Other Riser Cards

These riser cards are valuable tools in the test and production field. They help protect the gold fingers of the add-on board from wear out due to repeated insertion cycles. They can also be utilized on the motherboard to enable the user to test the add-on boards frequently without causing damage to the connector on the motherboard. These risers are also a good solution for raising our bus isolation extender to the user's desired height.

AMR-02 - Audio Modem Riser Extender Card, Rev-02.Dimension - H: 2.31" x W: 1.81"AMR-02 EXTENDER PICTURE

CNR01 - CNR extender, REV-01. Dimension - H: 2.47" x W: 1.93"CNR01 EXTENDER PICTURE

CNRSX - CNR wearout extender. Dimension - H: 1.30" x W: 2.45"CNR WEAROUT EXTENDER PICTURE

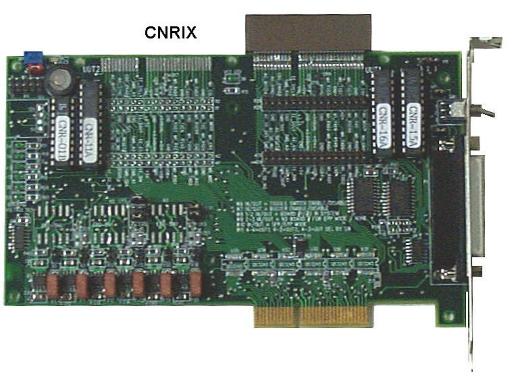

CNRIX - CNRIX is a CNR Bus Isolation Extender that allows user to test the CNR add-on boards quickly without having to power the system down each time. It is especially designed to save valuable labor and time in production testing environment. It is also a great tool for engineers during product development while many changes and testing are required. It provides total power and signal isolation between the motherboard and the board under test. It can be controlled manually by an on-board toggle switch or by external TTL signals through PC's parallel port. Besides saving time for testing, it also protects the motherboard from damages. The CNRIX is designed with many years of field experience and real user-suggested features. It is built with quality and state of the art components. Dimension - H: 4.55" x W: 6.83"CNRIX PICTURE

CRIMM-02- Continuity RIMM module, Rev-02, designed to be latched by the RIMM socket.
Dimension - H: 25.4mm x W: 133.35mmCRIMM-02 RISER PICTURE

CRIMM-03- Continuity RIMM module, Rev-03, designed NOT to be latched by the RIMM socket.
Dimension - H: 25.4mm x W: 123.35mmCRIMM-03 RISER PICTURE

DIMM-01- DIMM Riser Card, Rev-01, designed to be latched by the DIMM socket.Dimension - H: 1.21" x W: 5.26" (NOT including socket ears). It is being replaced by the DIMM133-01-L below.
DIMM-01 RISER PICTURE


DIMM-02- DIMM Riser Card, Rev-02, designed NOT to be latched by the DIMM socket.Dimension - H: 1.21" x W: 4.86" (NOT including socket ears). It is being replaced by the DIMM133-01-U-S below.DIMM-02 RISER PICTURE


DIMMSO2- straight DIMM extender, 2-layer board, one-to-one connection. Designed NOT to be latched by the DIMM socket. Dimension - H: 1.21" x W: 4.86" (NOT including socket ears).DIMMSO2 RISER PICTURE


DIMM100-A- 100 pin DIMM extender with right angle option, Tall. Dimension - H: 3.24" x W: 3.55 " (NOT including socket ears). User can order it with a connector on B side by specifying "-T" to the part number .DIMM100-A RISER PICTURE


DIMM100-B- 100 pin DIMM Riser Card, designed to be latched by the DIMM socket. Dimension - H: 1.73" x W: 3.55" (NOT including socket ears).DIMM100-B RISER PICTURE


DIMM100-C- 100 pin DIMM Riser Card, designed NOT to be latched by the DIMM socket. Dimension - H: 1.73" x W: 3.55" (NOT including socket ears).DIMM100C RISER PICTURE

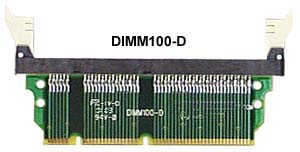

DIMM100-D- 100 pin DIMM Riser Card, designed NOT to be latched by the DIMM socket. Dimension - H: 1.00" x W: 3.55" (NOT including socket ears).DIMM100D RISER PICTURE

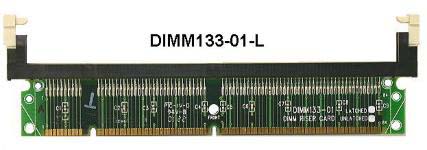

DIMM133-01-L- - 168 pin DIMM Riser Card, designed to be latched by the DIMM socket. It allows memory operation up to 133MHz. Dimension - H: 0.78" x W: 5.25" (NOT including the socket ears).DIMM133 RISER PICTURE


DIMM133-01-U-A- -168 pin DIMM Riser Card with angle cut, designed NOT to be latched by the DIMM socket. It allows memory operation up to 133MHz. Dimension - H: 0.78" x W: 5.25" (NOT including the socket ears).DIMM133 RISER PICTURE

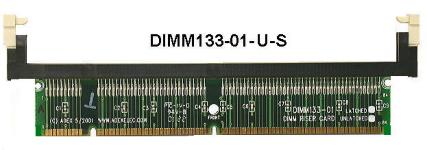

DIMM133-01-U-S- -168 pin DIMM Riser Card with straight cut, designed NOT to be latched by the DIMM socket. It allows memory operation up to 133MHz. Dimension - H: 0.78" x W: 4.86" (NOT including the socket ears).DIMM133 RISER PICTURE

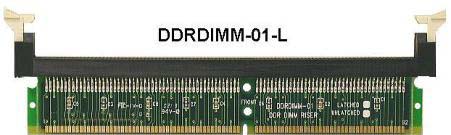

DDRDIMM-01-L- - 184 pin DDRDIMM Riser Card, designed to be latched by the DDRDIMM socket. Dimension - H: 0.78" x W: 5.25" (NOT including socket ears).

DDRDIMM RISER PICTURE


DDRDIMM-01-U-A- - 184 pin DDRDIMM Riser Card with angle cut, designed NOT to be latched by the DDRDIMM socket. Dimension - H: 0.78" x W: 5.25" (NOT including socket ears).DDRDIMM RISER PICTURE

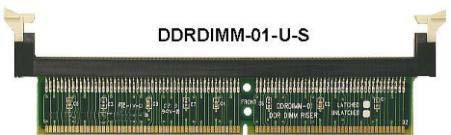

DDRDIMM-01-U-S- - 184 pin DDRDIMM Riser Card with straight cut, designed NOT to be latched by the DDRDIMM socket. Dimension - H: 0.78" x W: 4.98" (NOT including socket ears).DDRDIMM RISER PICTURE

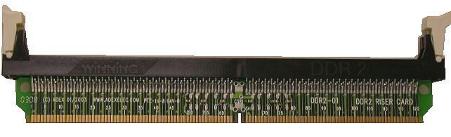

DDR2-01- - 240 pin DDR2 Riser Card with angle cut, designed NOT to be latched by the DDR2 socket. A special version (-CSR) that accommodates a current sensing resistor for current measurement is available upon request. Dimension - H: 0.57" x W: 5.25" (NOT including socket ears).DDR2-01 RISER PICTURE


MPCIEX- - MiniPCI extender, 124 pin Type III. It has a small footprint, designed to fit inside the opening of a laptop computer, with a tall MiniPCI connector to clear the laptop's case. There is a on-board LED 3.3V indicator plus a jumper to allow external 3.3V input. All power lines can be fused or bridged with a DMM for current measurement purpose. In the standard configuration, a Mini-PCI connector with holding clips is provided. For faster testing operation, user can choose a straight in / out connector without the clips, by adding a -S suffix to the part number. Dimension - H: 1.75" x W: 2.35" (based board, not including the connector).

PICTURE OF MPCIEX PICTURE OF MPCIEX


MPCIFLEX- - MiniPCI 124 pin, Type III flexible extender . This flexible extender allows the user to bring the Mini-PCI port out, from under the laptop. It can be positioned in any direction for testing purpose. It also provides test points on all the signals on both sides of the board. In the standard configuration, a Mini-PCI connector with holding clips is provided. For faster testing operation, user can choose a straight in / out connector without the clips, by adding a -S suffix to the part number. User can specify any cable length, however, for reliable operation, the cable should be no longer than 4". Headers for the test points can be ordered with a -H option. Top board dimension - H: 1.68" x W: 2.35" (not including the connector). Bottom board dimension - H: .94" x W: 2.35".

PICTURE OF MPCIFLEX


RIMMS-01- RIMM Saver Card, Rev-01, designed to be latched by the RIMM socket.
Dimension - H: 1.27" x W: 5.27"RIMMS-01 RISER PICTURE

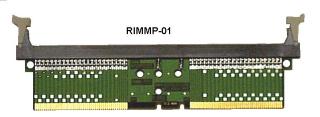

RIMMP-01- RIMM Interposer Card, Rev-01, designed NOT to be latched by the RIMM socket.
Dimension - H: 1.27" x W: 5.27"RIMMP-01 RISER PICTURE

SLOT1-02 - SLOT1 Riser Card (for Pentium II processor), Rev-02, board thickness 50mil.Dimension -H: 1.97" x W: 5.43"

SLOT1-02 RISER PICTURE

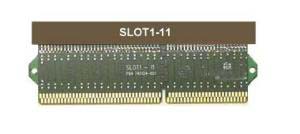

SLOT1-11 - SLOT1 Riser Card (for Pentium II processor), Rev-11, board thickness 55 mil, with modified gold fingers (Replaces previous SLOT1 Rev-03). Dimension -H: 1.97" x W: 5.43"Picture of SLOT1-11

SLOT1R-02 - SLOT1 Right Angle Riser Card (for Pentium II processor), Rev-02.Dimension - H: 3.1" x W: 5.5
SLOT1R-02 RISER PICTURE

SLOT1-S01 - SLOT1 straight riser card, 2 layer. Dimension - H: 1.97" x W: 5.43"
SLOT1-S02 RISER PICTURE

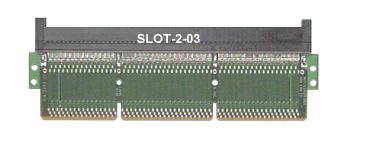

SLOT2-03 - SLOT2 Riser Card (for Xeon processor) with modified palladium fingers for longer lasting insertion cycles. It is a multilayer PCB, designed for testing of the processor modules. Rev-03.
Dimension - H: 2.13" x W: 5.99"SLOT2 -03 RISER PICTURE

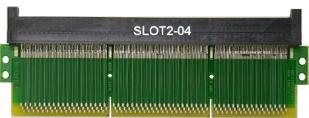

SLOT2-04 - SLOT2 Riser Card (for Xeon processor) with modified palladium fingers for longer lasting insertion cycles. The riser is a 2-layer PCB, designed for continuity testing only.
Dimension - H: 1.38" x W: 5.99"SLOT2 -04 RISER PICTURE


SODIMM-01 - Straight in-line SODIMM extender.
Dimension - H: 2.28" x W: 2.75"SODIMM RISER PICTURE


SODIMMRL-STD -Bend back SODIMM extender for standard SODIMM socket.
Dimension - H: 1.2" x W: 2.75"SODIMMRL STANDARD RISER PICTURE


SODIMMRL-REV - Bend back SODIMM extender for reverse SODIMM socket.
Dimension - H: 1.2" x W: 2.75"SODIMMRL REVERSE RISER PICTURE


DDR2-SODIMM-01 - DDR2-SODIMM extender, 200 pin, 1.8V. A Current Sensing Resistor option is available with a -CSR suffix to the base P/N. Dimension - H: 2" x W: 2.8"DDR2-SODIMM RISER PICTURE
